Universal Serial Bus (USB) provides an expandable, hot-pluggable Plug and Play serial interface that ensures a standard, low-cost connection for peripheral devices such as keyboards, mice, joysticks, printers, scanners, storage devices, modems, and video conferencing cameras. Migration to USB is recommended for all peripheral devices that use legacy ports such as PS/2, serial, and parallel ports.

The USB-IF is a Special Interest Groups (SIGs) that maintains the Official USB Specification, test specifications and tools.

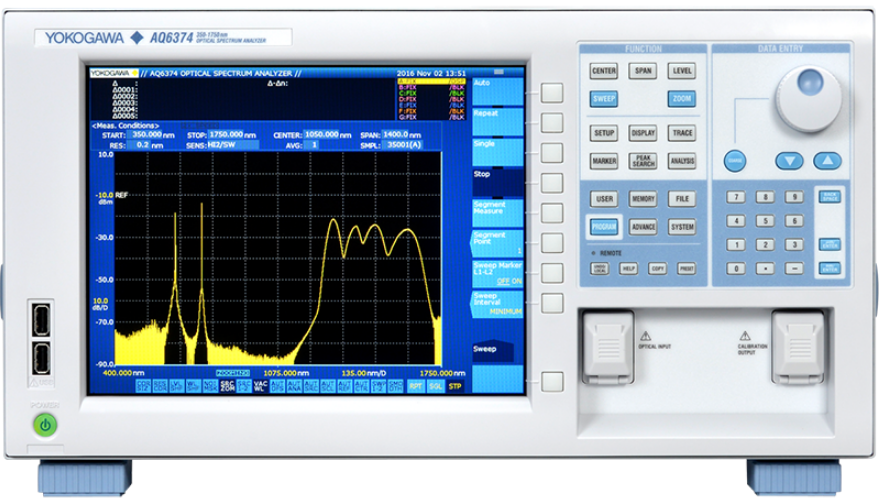

Description The USB driver is required for the communication via USB interface. YTUSB USB Driver is new designed driver and it’s different from YKMUSB USB Driver. If the device is not yet connected, first install the device-specific driver, such as by using the appropriate installer. After the device-specific driver is installed, Windows 10 will select that driver instead of the standard USB audio 2.0 driver when you first connect the device. To fully charge a depleted battery pack takes about four and one half hours. The recharging cradle also connects the communicator with a PC for file updates to the communicator when it is properly inserted in the cradle and a USB cable is attached from the cradle to a PC with the proper USB drivers and Yokogawa update package.

If drivers were not downloaded automatically by Windows Update, use Device Manager to refresh the driver from Windows Update, or contact the device manufacturer. I’m Moli, your virtual agent. I can help with Moto phone issues.
Usb driver download - Best answers Download usb driver - Best answers Spvd-012.1 usb driver for windows 10 - Forum - Drivers.

Windows operating systems include native support for USB host controllers, hubs, and devices and systems that comply with the official USB specification. Windows also provides programming interfaces that you can use to develop device drivers and applications that communicate with a USB device.

USB in WindowsWindows 10: What's new for USB

Overview of new features and improvements in USB in Windows 10.

USB FAQ

Frequently asked questions from driver developers about the USB stack and features that are supported in USB.

Microsoft OS Descriptors for USB Devices

Windows defines MS OS descriptors that allows better enumeration when connected to system running Windows operating system

Microsoft-provided USB driversUSB device-side drivers in Windows

A set of drivers for handling common function logic for USB devices.

USB host-side drivers in Windows

Microsoft provides a core stack of drivers that interoperate with devices that are connected to EHCI and xHCI controllers.

USB-IF device class drivers

Windows provides in-box device class drivers for many USB-IF approved device classes, audio, mass storage, and so on.

USB generic function driver–WinUSB

Windows provides Winusb.sys that can be loaded as a function driver for a custom device and a function of a composite device.

USB generic parent driver for composite devices–Usbccgp

Parent driver for USB devices with multiple functions. Usbccgp creates physical device objects (PDOs) for each of those functions. Those individual PDOs are managed by their respective USB function drivers, which could be the Winusb.sys driver or a USB device class driver.

WDF extension for developing USB drivers

USB connector manager class extension (UcmCx) reference
USB host controller (UCX) reference
USB function class extension (UFX) reference

Testing USB devices with Windows

Get information about the tools that you can use to test your USB hardware or software, capture traces of operations and other system events, and observe how the USB driver stack responds to a request sent by a client driver or an application.

Read an overview of tests in the Hardware Certification Kit that enable hardware vendors and device manufacturers to prepare their USB devices and host controllers for Windows Hardware Certification submission.

Other Resources for USB

Official USB Specification

Provides complete technical details for the USB protocol.

Microsoft Windows USB Core Team Blog

Check out posts written by the Microsoft USB Team. The blog focuses on the Windows USB driver stack that works with various USB Host controllers and USB hubs found in Windows PC. A useful resource for USB client driver developers and USB hardware designers understand the driver stack implementation, resolve common issues, and explain how to use tools for gathering traces and log files.

OSR Online Lists - ntdev

Discussion list managed by OSR Online for kernel-mode driver developers.

Windows Dev-Center for Hardware Development

Miscellaneous resources based on frequently asked questions from developers who are new to developing USB devices and drivers that work with Windows operating systems.

USB-related videos

UWP apps for USB devicesUnderstanding USB 3.0 in Windows 8Building great USB 3.0 devicesUSB Debugging Innovations in Windows 8 (Part I, II, & III)

USB hardware for learning

MUTT devices

MUTT and SuperMUTT devices and the accompanying software package are integrated into the HCK suite of USB tests. They provide automated testing that can be used during the development cycle of USB controllers, devices and systems, especially stress testing.

OSR USB FX2 Learning Kit

If you are new to USB driver development. The kit is the most suitable to study USB samples included in this documentation set. You can get the learning kit from OSR Online Store.

Write a USB client driver (KMDF, UMDF)

Introduces you to USB driver development. Provides information about choosing the most appropriate model for providing a USB driver for your device. This section also includes tutorials about writing your first user-mode and kernel-mode USB drivers by using the USB templates included with Microsoft Visual Studio.

Write a USB host controller driver

If you are developing an xHCI host controller that is not compliant with the specification or developing a custom non-xHCI hardware (such as a virtual host controller), you can write a host controller driver that communicates with UCX. For example, consider a wireless dock that supports USB devices. The PC communicates with USB devices through the wireless dock by using USB over TCP as a transport.

USB host controller (UCX) reference

Write a function controller driver for a USB device

You can develop a controller driver that handles all USB data transfers and commands sent by the host to the device. This driver communicates with the Microsoft-provided USB function controller extension (UFX).

USB function class extension (UFX) reference

Write a USB Type-C connector driver

Windows 10 introduces support for the new USB connector: USB Type-C. You can write a driver for the connector that communicates with the Microsoft-provided class extension module: UcmCx to handle scenarios related to Type-C connectors such as, which ports support Type-C, which ports support power delivery.

USB connector manager class extension (UcmCx) reference

Write a USB dual-role controller driver

USB Dual Role controllers are now supported in Windows 10. Windows includes in-box client drivers for ChipIdea and Synopsys controllers. For other controllers, Microsoft provides a set of programming interfaces that allow the dual-role class extension (UrsCx) and its client driver to communicate with each other to handle the role-switching capability of a dual-role controller.

For more information about this feature, see:

USB dual-role controller driver programming reference

Write a USB driver for emulated devices

Windows 10 introduces support for emulated devices. Now you can develop an emulated Universal Serial Bus (USB) host controller driver and a connected virtual USB device. Both components are combined into a single KMDF driver that communicates with the Microsoft-provided USB device emulation class extension (UdeCx).

Emulated USB host controller driver programming reference

Write a UWP app

Provides step-by-step instructions about implementing USB features in a UWP app. To write such an app for a USB device you need Visual Studio and Microsoft Windows Software Development Kit (SDK) .

Write a Windows desktop app

Describes how an application can call WinUSB Functions to communicate with a USB device.

WinUSB functions

Common programming scenarios

List of common tasks that a driver or an app performs in order to communicate with a USB device. Get quick info about the programming interfaces you need for each task.

USB samples

Development tools

Download kits and tools for Windows

-->

Starting with Windows 10, release 1703, a USB Audio 2.0 driver is shipped with Windows. It is designed to support the USB Audio 2.0 device class. The driver is a WaveRT audio port class miniport. For more information about the USB Audio 2.0 device class, see https://www.usb.org/documents?search=&type%5B0%5D=55&items_per_page=50.

The driver is named: usbaudio2.sys and the associated inf file is usbaudio2.inf.

The driver will identify in device manager as 'USB Audio Class 2 Device'. This name will be overwritten with a USB Product string, if it is available.

The driver is automatically enabled when a compatible device is attached to the system. However, if a third-party driver exists on the system or Windows Update, that driver will be installed and override the class driver.

Architecture

usbaudio2.sys fits within the wider architecture of Windows USB Audio as shown.

Related USB specifications

The following USB specifications define USB Audio and are referenced in this topic.

USB-2 refers to the Universal Serial Bus Specification, Revision 2.0
ADC-2 refers to the USB Device Class Definition for Audio Devices, Release 2.0.
FMT-2 refers to the Audio Data Formats specification, Release 2.0.

The USB-IF is a special interest group that maintains the Official USB Specification, test specifications and tools.

Audio formats

The driver supports the formats listed below. An alternate setting which specifies another format defined in FMT-2, or an unknown format, will be ignored.

Type I formats (FMT-2 2.3.1):

PCM Format with 8..32 bits per sample (FMT-2 2.3.1.7.1)
PCM8 Format (FMT-2 2.3.1.7.2)
IEEE_FLOAT Format (FMT-2 2.3.1.7.3)

Type III formats (FMT-2 2.3.3 and A.2.3):

IEC61937_AC-3
IEC61937_MPEG-2_AAC_ADTS
IEC61937_DTS-I
IEC61937_DTS-II
IEC61937_DTS-III
TYPE_III_WMA

Feature descriptions

This section describes the features of the USB Audio 2.0 driver.

Audio function topology

The driver supports all entity types defined in ADC-2 3.13.

Each Terminal Entity must have a valid clock connection in compatible USB Audio 2.0 hardware. The clock path may optionally include Clock Multiplier and Clock Selector units and must end in a Clock Source Entity.

The driver supports one single clock source only. If a device implements multiple clock source entities and a clock selector, then the driver will use the clock source that is selected by default and will not modify the clock selector’s position.

A Processing Unit (ADC-2 3.13.9) with more than one input pin is not supported.

An Extension Unit (ADC-2 3.13.10) with more than one input pin is not supported.

Cyclic paths in the topology are not allowed.

Audio streaming

The driver supports the following endpoint synchronization types (USB-2 5.12.4.1):

Asynchronous IN and OUT
Synchronous IN and OUT
Adaptive IN and OUT

For the asynchronous OUT case the driver supports explicit feedback only. A feedback endpoint must be implemented in the respective alternate setting of the AS interface. The driver does not support implicit feedback.

There is currently limited support for devices using a shared clock for multiple endpoints.

For the Adaptive IN case the driver does not support a feedforward endpoint. If such an endpoint is present in the alternate setting, it will be ignored. The driver handles the Adaptive IN stream in the same way as an Asynchronous IN stream.

The size of isochronous packets created by the device must be within the limits specified in FMT-2.0 section 2.3.1.1. This means that the deviation of actual packet size from nominal size must not exceed +/- one audio slot (audio slot = channel count samples).

Descriptors

An audio function must implement exactly one AudioControl Interface Descriptor (ADC-2 4.7) and one or more AudioStreaming Interface Descriptors (ADC-2 4.9). A function with an audio control interface but no streaming interface is not supported.

The driver supports all descriptor types defined in ADC-2, section 4. The following subsections provide comments on some specific descriptor types.

Class-Specific AS interface descriptor

For details on this specification, refer to ADC-2 4.9.2.

An AS interface descriptor must start with alternate setting zero with no endpoint (no bandwidth consumption) and further alternate settings must be specified in ascending order in compatible USB Audio 2.0 hardware.

An alternate setting with a format that is not supported by the driver will be ignored.

Each non-zero alternate setting must specify an isochronous data endpoint, and optionally a feedback endpoint. A non-zero alternate setting without any endpoint is not supported.

The bTerminalLink field must refer to a Terminal Entity in the topology and its value must be identical in all alternate settings of an AS interface.

The bFormatType field in the AS interface descriptor must be identical to bFormatType specified in the Format Type Descriptor (FMT-2 2.3.1.6).

For Type I formats, exactly one bit must be set to one in the bmFormats field of the AS interface descriptor. Otherwise, the format will be ignored by the driver.

To save bus bandwidth, one AS interface can implement multiple alternate settings with the same format (in terms of bNrChannels and AS Format Type Descriptor) but different wMaxPacketSize values in the isochronous data endpoint descriptor. For a given sample rate, the driver selects the alternate setting with the smallest wMaxPacketSize that can fulfill the data rate requirements.

Type I format type descriptor

For details on this specification, refer to FMT-2 2.3.1.6.

The following restrictions apply:

Format	Subslot size	Bit resolution
Type I PCM format:	1 <= bSubslotSize <= 4	8 <= bBitResolution <= 32
Type I PCM8 format:	bSubslotSize 1	bBitResolution 8
Type I IEEE_FLOAT format:	bSubslotSize 4	bBitResolution 32
Type III IEC61937 formats:	bSubslotSize 2	bBitResolution 16

Class-Specific AS isochronous audio data endpoint descriptor

For details on this specification, refer to ADC-2 4.10.1.2.

The MaxPacketsOnly flag in the bmAttributes field is not supported and will be ignored.

The fields bmControls, bLockDelayUnits and wLockDelay will be ignored.

Class requests and interrupt data messages

The driver supports a subset of the control requests defined in ADC-2, section 5.2, and supports interrupt data messages (ADC-2 6.1) for some controls. The following table shows the subset that is implemented in the driver.

Entity	Control	GET CUR	SET CUR	GET RANGE
Clock Source	Sampling Frequency Control	x	x	x
Clock Selector	Clock Selector Control	x
Clock Multiplier	Numerator Control	x
Denominator Control	x
Terminal	Connector Control	x	x
Mixer Unit	Mixer Control	x	x	x
Selector Unit	Selector Control	x	x
Feature Unit	Mute Control	x	x	x
Volume Control	x	x	x	x
Automatic Gain Control	x	x
Effect Unit	–
Processing Unit	–
Extension Unit	–

Additional information on the controls and requests is available in the following subsections.

Clock source entity

For details on this specification, refer to ADC-2 5.2.5.1.

At a minimum, a Clock Source Entity must implement Sampling Frequency Control GET RANGE and GET CUR requests (ADC-2 5.2.5.1.1) in compatible USB Audio 2.0 hardware.

The Sampling Frequency Control GET RANGE request returns a list of subranges (ADC-2 5.2.1). Each subrange describes a discrete frequency, or a frequency range. A discrete sampling frequency must be expressed by setting MIN and MAX fields to the respective frequency and RES to zero. Individual subranges must not overlap. If a subrange overlaps a previous one, it will be ignored by the driver.

A Clock Source Entity which implements one single fixed frequency only does not need to implement Sampling Frequency Control SET CUR. It implements GET CUR which returns the fixed frequency, and it implements GET RANGE which reports one single discrete frequency.

Clock selector entity

For details on this specification, refer to ADC-2 5.2.5.2

The USB Audio 2.0 driver does not support clock selection. The driver uses the Clock Source Entity which is selected by default and never issues a Clock Selector Control SET CUR request. The Clock Selector Control GET CUR request (ADC-2 5.2.5.2.1) must be implemented in compatible USB Audio 2.0 hardware.

Feature unit

For details on this specification, refer to ADC-2 5.2.5.7.

The driver supports one single volume range only. If the Volume Control GET RANGE request returns more than one range, then subsequent ranges will be ignored.

The volume interval expressed by the MIN and MAX fields should be an integer multiple of the step size specified in the RES field.

If a feature unit implements single channel controls as well as a master control for Mute or Volume, then the driver uses the single channel controls and ignores the master control.

Additional Information for OEM and IHVs

OEMs and IHVs should test their existing and new devices against the supplied in-box driver.

There is not any specific partner customization that is associated with the in-box USB Audio 2.0 driver.

This INF file entry (provided in a update to Windows Release 1703), is used to identify that the in-box driver is a generic device driver.

The in-box driver registers for the following compatible IDs with usbaudio2.inf.

See the USB audio 2.0 specification for subclass types.

USB Audio 2.0 Devices with MIDI (subclass 0x03 above) will enumerate the MIDI function as a separate multi-function device with usbaudio.sys (USB Audio 1.0 driver) loaded.

The USB Audio 1.0 class driver registers this compatible ID with wdma_usb.inf.

And has these exclusions:

An arbitrary number of channels (greater than eight) are not supported in shared mode due to a limitation of the Windows audio stack.

IHV USB Audio 2.0 drivers and updates

For IHV provided third party driver USB Audio 2.0 drivers, those drivers will continue to be preferred for their devices over our in-box driver unless they update their driver to explicitly override this behavior and use the in-box driver.

Audio Jack Registry Descriptions

Starting in Windows 10 release 1703, IHVs that create USB Audio Class 2.0 devices having one or more jacks have the capability to describe these jacks to the in-box Audio Class 2.0 driver. The in-box driver uses the supplied jack information when handling the KSPROPERTY_JACK_DESCRIPTION for this device.

Jack information is stored in the registry in the device instance key (HW key).

The following describes the audio jack information settings in the registry:

<tid> = terminal ID (As defined in the descriptor)

<n> = Jack number (1 ~ n).

Convention for <tid> and <n> is:

Base 10 (8, 9, 10 rather than 8, 9, a)
No leading zeros
n is 1-based (first jack is jack 1 rather than jack 0)

For example:

T1_NrJacks, T1_J2_ChannelMapping, T1_J2_ConnectorType

For additional audio jack information, see KSJACK_DESCRIPTION structure.

These registry values can be set in various ways:

By using custom INFs which wrap the in-box INF for the purpose to set these values.
Directly by the h/w device via a Microsoft OS Descriptors for USB devices (see example below). For more information about creating these descriptors, see Microsoft OS Descriptors for USB Devices.

Microsoft OS Descriptors for USB Example

The following Microsoft OS Descriptors for USB example contains the channel mapping and color for one jack. The example is for a non-composite device with single feature descriptor.

The IHV vendor should extend it to contain any other information for the jack description.

Troubleshooting

If the driver does not start, the system event log should be checked. The driver logs events which indicate the reason for the failure. Similarly, audio logs can be manually collected following the steps described in this blog entry. If the failure may indicate a driver problem, please report it using the Feedback Hub described below, and include the logs.

For information on how to read logs for the USB Audio 2.0 class driver using supplemental TMF files, see this blog entry. For general information on working with TMF files, see Displaying a Trace Log with a TMF File.

For information on 'Audio services not responding' error and USB audio device does not work in Windows 10 version 1703 see, USB Audio Not Playing
